Usage

All examples below assume the following setup:

using PlottingToolsHEP, FHist, CairoMakie, Random

Random.seed!(42)
h1 = Hist1D(randn(10_000);           binedges = -6:0.1:6)
h2 = Hist1D(2 .* randn(10_000);      binedges = -6:0.1:6)
h3 = Hist1D(randn(10_000) .+ 1;      binedges = -6:0.1:6)
h4 = Hist2D((randn(10_000), randn(10_000)))

ATLAS Theme

Set the global ATLAS publication-style theme before plotting:

set_ATLAS_theme()

This configures Nimbus/TeXGyreHeros fonts, inward tick marks with mirroring, minor ticks, and disables grid lines — matching the ATLAS experiment's publication guidelines.

To get the Theme object without setting it globally:

theme = AtlasTheme()
with_theme(theme) do
    # your plots here
end

Color palettes

Two named color palettes are available:

  • ATLAS_colors — 9-color palette matching the ATLAS collaboration style
  • gaudi_colors — 8-color palette inspired by the Gaudi framework

Both are plain Vector{String} of hex codes and can be passed directly to any color keyword argument in Makie or to the color keyword in multi_plot.

HEPPlotOptions

HEPPlotOptions is a keyword struct that bundles common axis and labelling options. It is passed via the options keyword to every plotting function.

opts = HEPPlotOptions(
    ATLAS_label        = "Internal",   # text placed after "ATLAS"; set nothing to suppress
    energy             = 13.6,         # √s in TeV shown in the label
    limits             = ((-6, 6), (0, 1200)),
    yscale             = identity,     # or log10 for a log y-axis
    xticks             = -6:2:6,
    ATLAS_label_offset = (30, -20),    # pixel offset from the top-left corner
)

All fields have sensible defaults, so HEPPlotOptions() gives a plain, unlabelled axis.

Plotting a single histogram — plot_hist

plot_hist accepts a Hist1D or Hist2D and returns a Figure.

1-D histogram

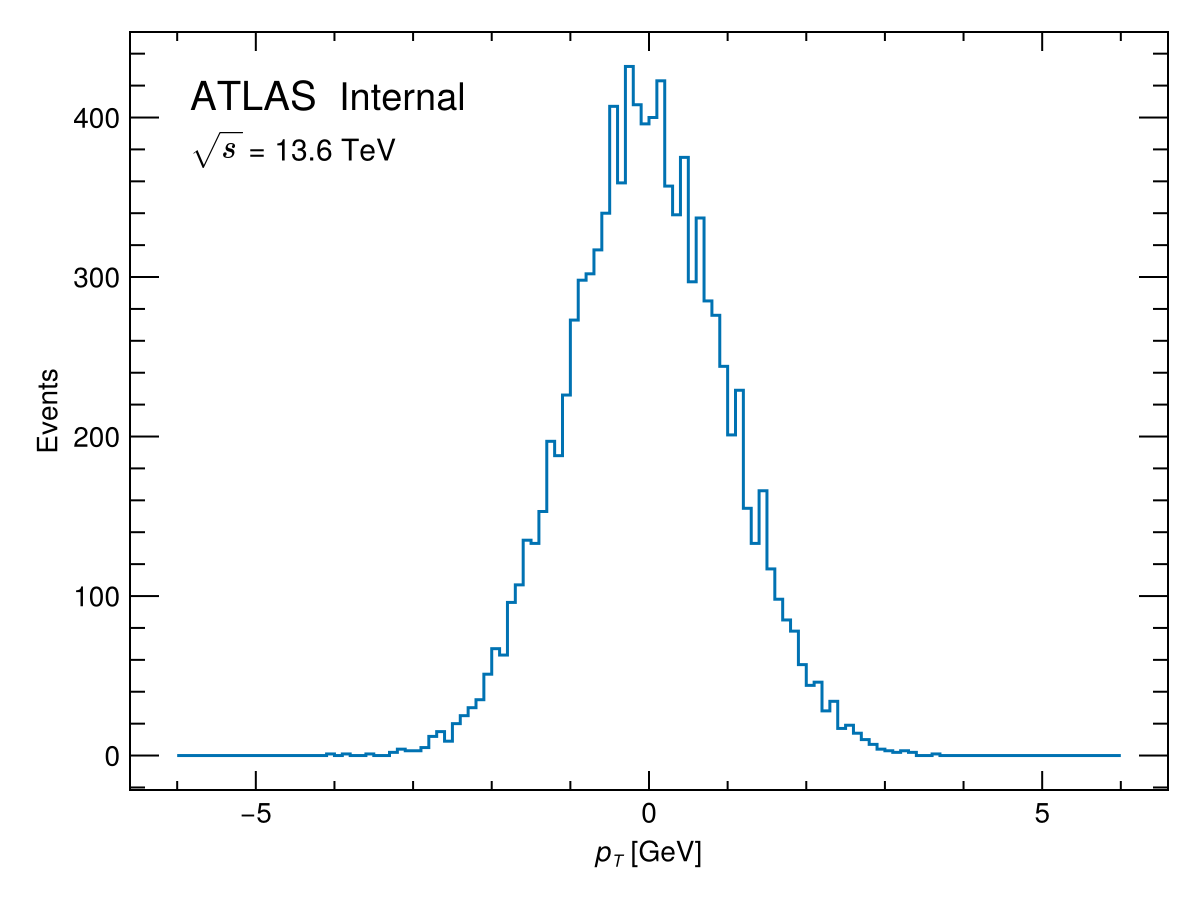

fig = plot_hist(h1, "My Title", L"$p_T$ [GeV]", "Events";
                normalize_hist = false,
                options = HEPPlotOptions(
                    ATLAS_label = "Internal",
                    limits      = ((-6, 6), (0, 1200)),
                    energy      = 13.6,
                ))

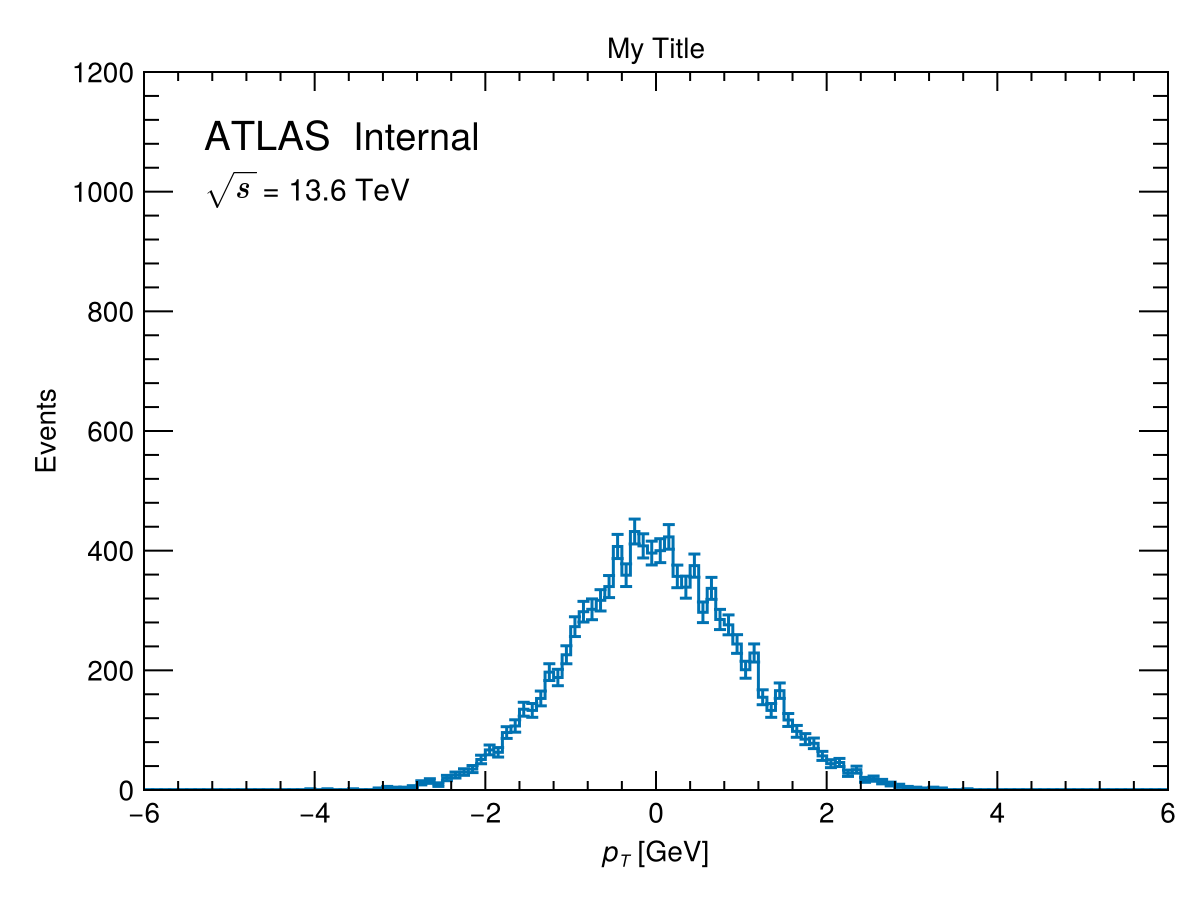

Example block output

Normalize to unit area with normalize_hist = true. Supply a label string to activate a legend:

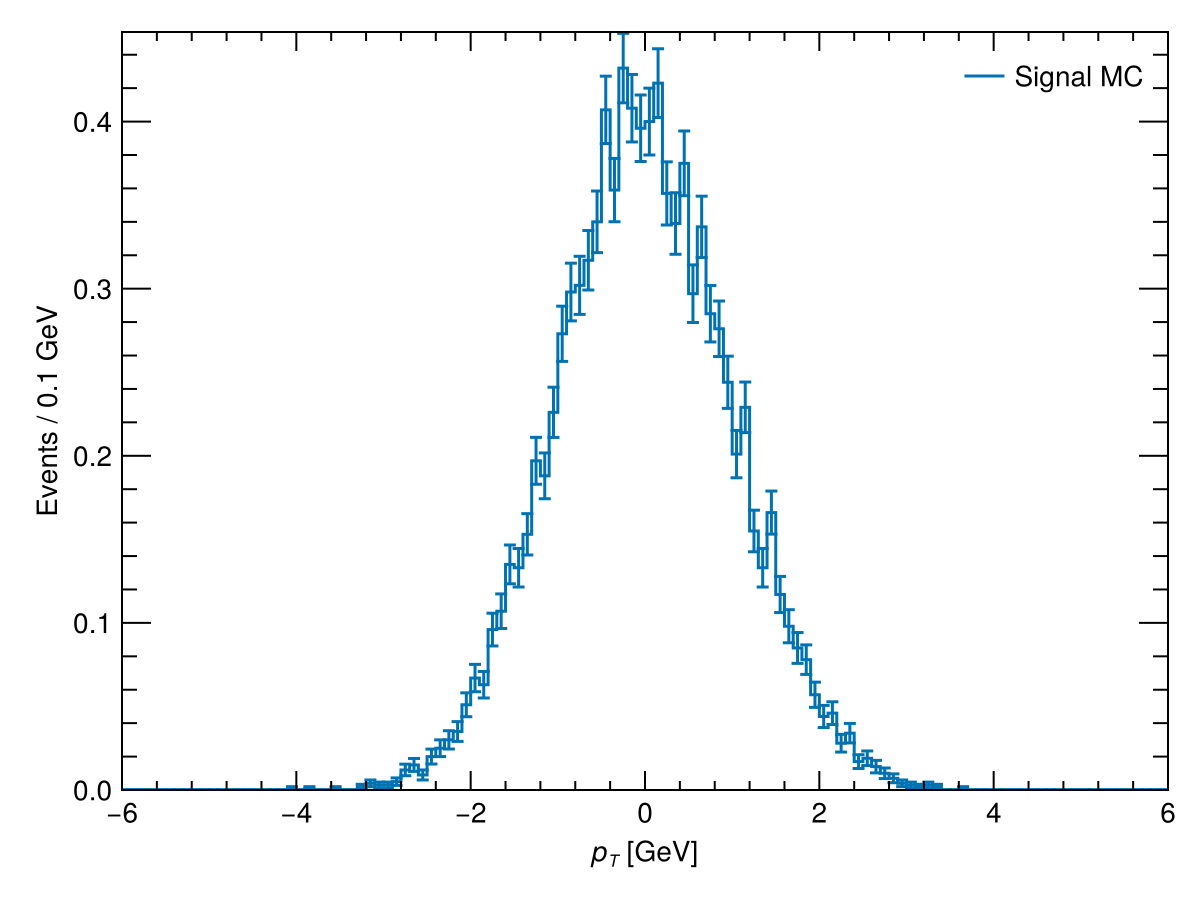

fig = plot_hist(h1, "", L"$p_T$ [GeV]", "Events / 0.1 GeV";
                label          = "Signal MC",
                normalize_hist = true)
Example block output

2-D histogram (heatmap)

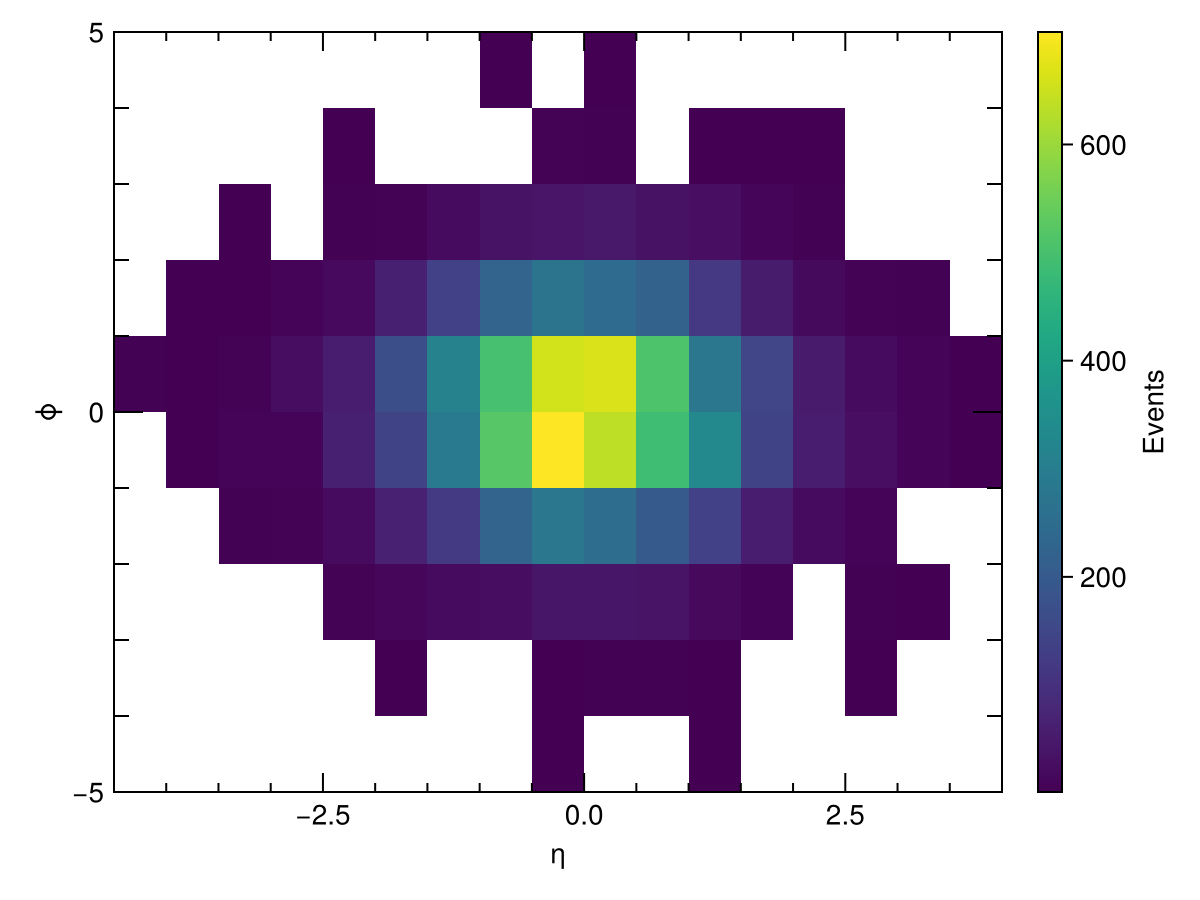

fig = plot_hist(h4, "", L"$\eta$", L"$\phi$";
                colorbar_label = "Events",
                colorscale     = identity,
                colorrange     = Makie.automatic)
Example block output

Specify explicit colorbar tick positions with colticks:

fig = plot_hist(h4, "", L"$\eta$", L"$\phi$";
                colorbar_label = "Events",
                colticks       = 0:200:1000)

Overlaying multiple histograms — multi_plot

multi_plot draws any number of histograms on one axis. It supports stacking, signal overlays, data scatter points, and lower sub-panels.

Basic overlay

fig = multi_plot(
    [h1, h2, h3], "", L"$p_T$ [GeV]", "Events",
    ["Sample A", "Sample B", "Sample C"];
    options = HEPPlotOptions(ATLAS_label = "Internal"),
)

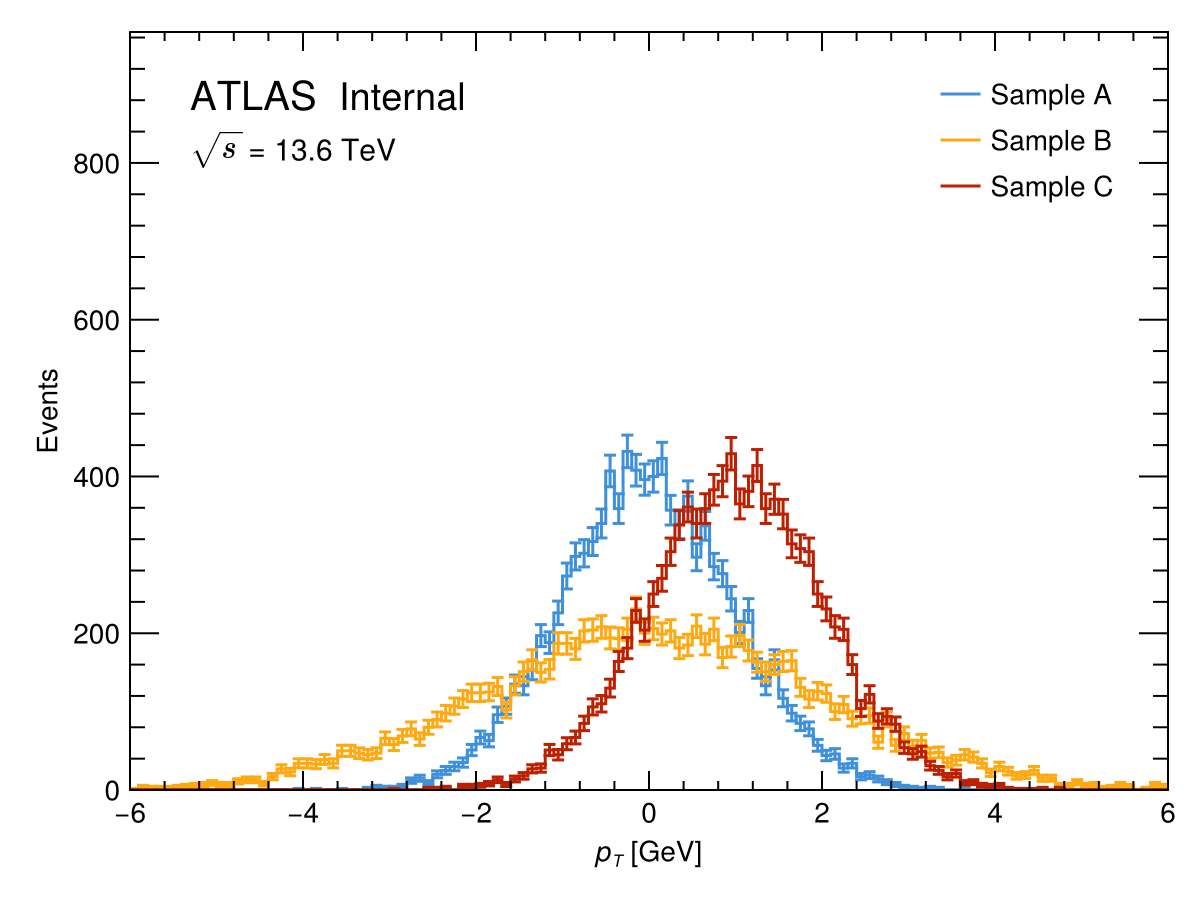

Example block output

Stacked histogram

fig = multi_plot(
    [h1, h2, h3], "", L"$p_T$ [GeV]", "Events",
    ["bkg 1", "bkg 2", "bkg 3"];
    stack   = true,
    options = HEPPlotOptions(ATLAS_label = "Internal"),
)

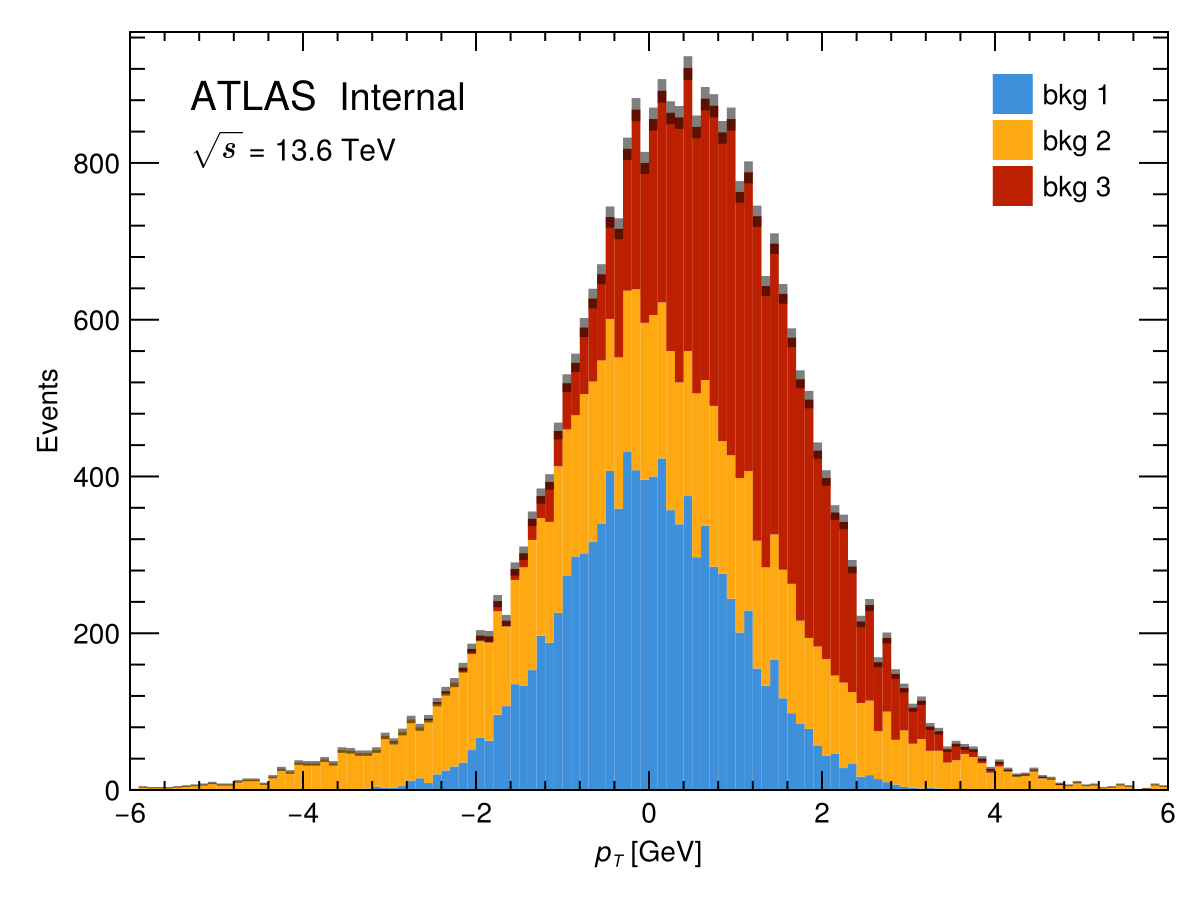

Example block output

Normalization

Control normalization with normalize_hists:

  • "" (default) — no normalization
  • "individual" — each histogram normalized to unit area
  • "total" — all histograms scaled to a common integral
fig = multi_plot(
    [h1, h2, h3], "", L"$p_T$ [GeV]", "Normalized",
    ["h1", "h2", "h3"];
    normalize_hists = "individual",
)
Example block output

Data / MC comparison with ratio panel

Pass data_hist and set lower_panel = :ratio to draw a ratio sub-panel below the main axis:

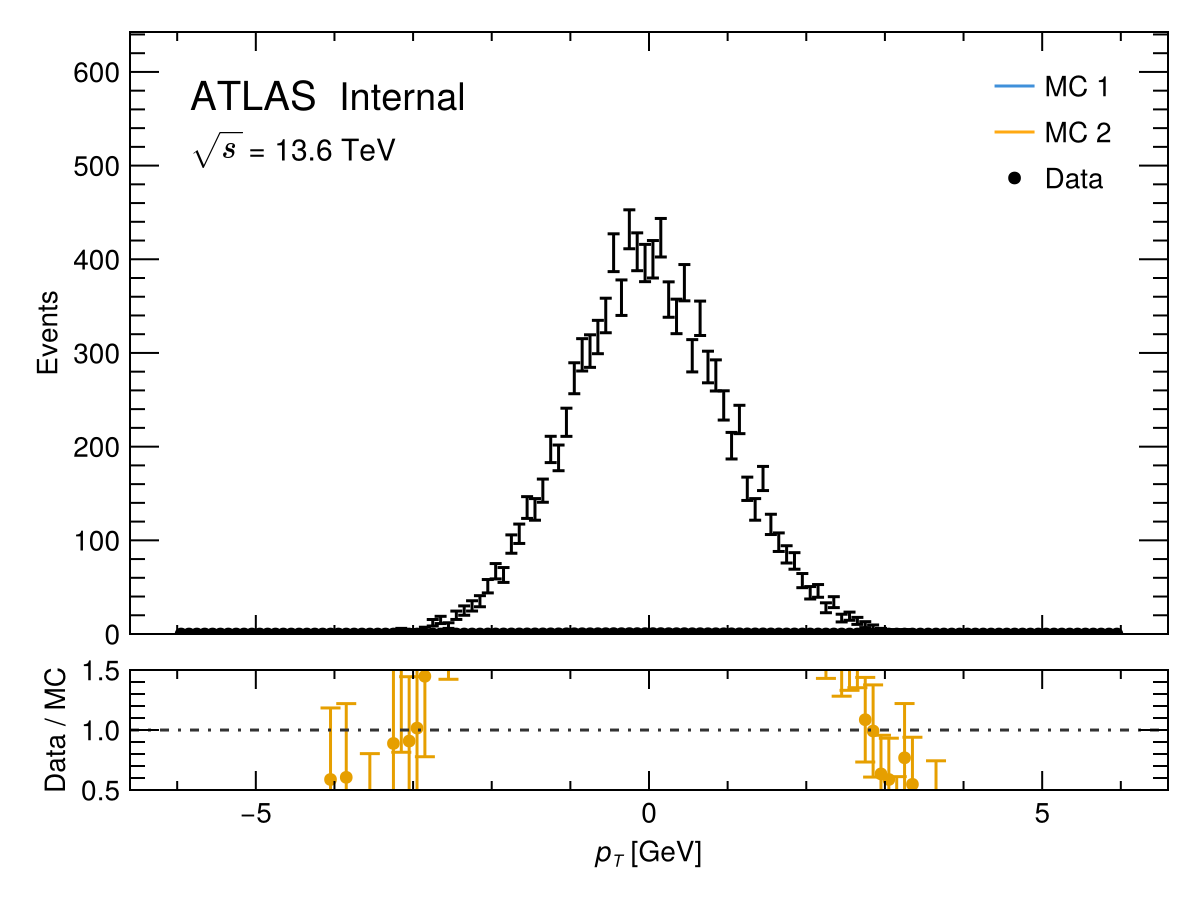

fig = multi_plot(
    [h2, h3], "", L"$p_T$ [GeV]", "Events", ["MC 1", "MC 2"];
    data_hist       = h1,
    data_label      = "Data",
    lower_panel     = :ratio,
    ratio_label     = "Data / MC",
    normalize_hists = "total",
    options         = HEPPlotOptions(ATLAS_label = "Internal"),
)
Example block output

Signal + background with S/√B panel

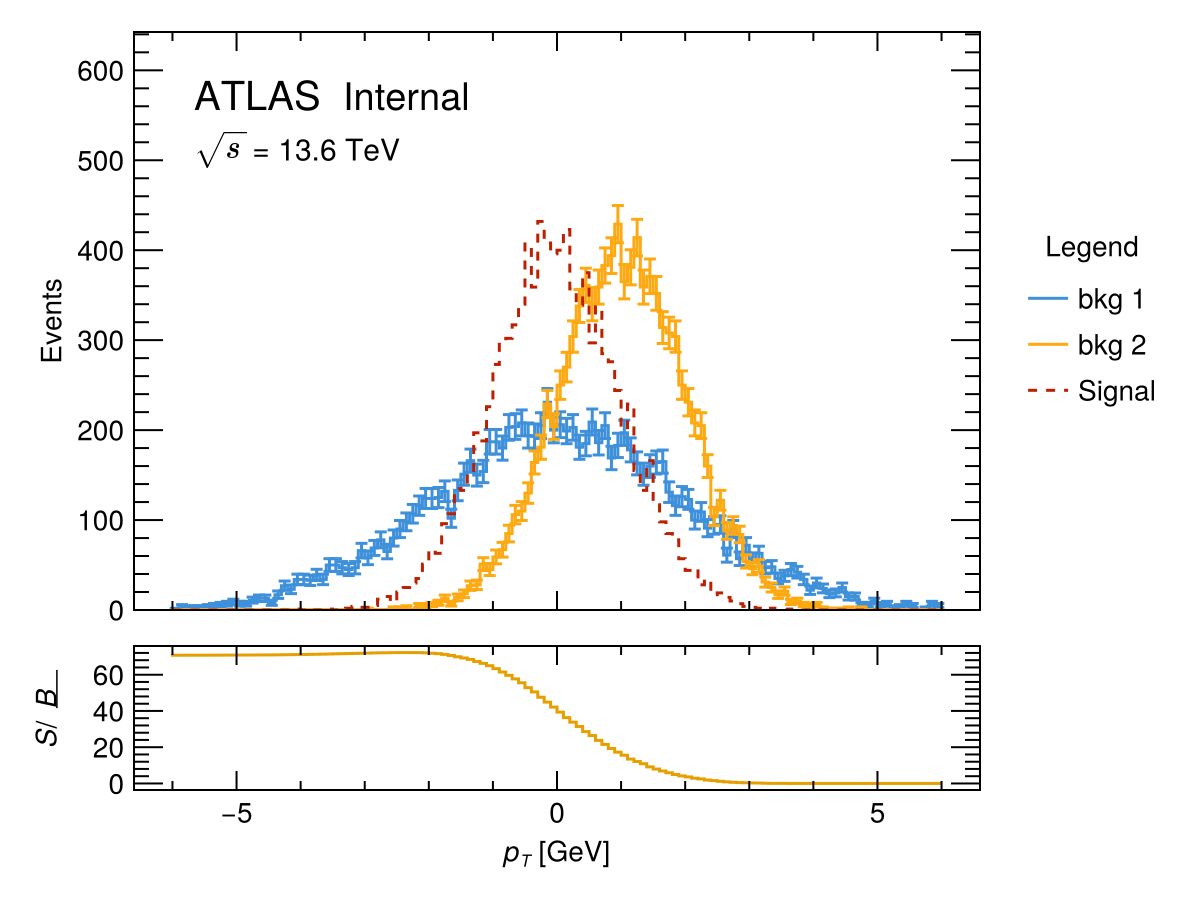

fig = multi_plot(
    [h2, h3], "", L"$p_T$ [GeV]", "Events", ["bkg 1", "bkg 2"];
    signal_hists    = [h1],
    signal_labels   = ["Signal"],
    lower_panel     = :s_sqrt_b,
    legend_position = :side,
    options         = HEPPlotOptions(ATLAS_label = "Internal"),
)

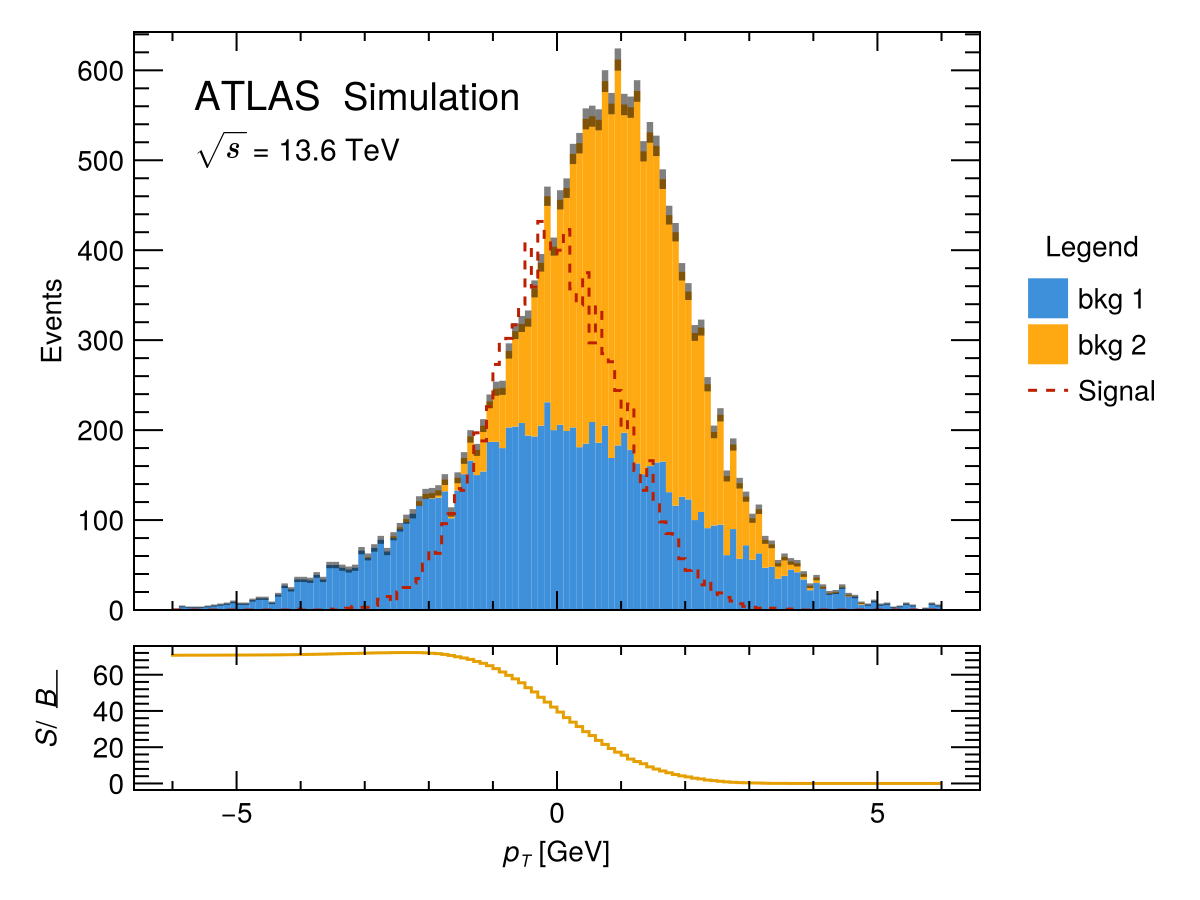

Example block output

Comparing two histograms — plot_comparison

plot_comparison is a convenience wrapper around multi_plot that overlays two histograms and draws a ratio panel. The second histogram appears as the "data" over the first "MC".

fig = plot_comparison(
    h1, h2,
    "", L"$\eta$", "Events",
    "Sample A", "Sample B", "A / B";
    normalize_hists = true,
    options         = HEPPlotOptions(ATLAS_label = "Internal", energy = 14),
)

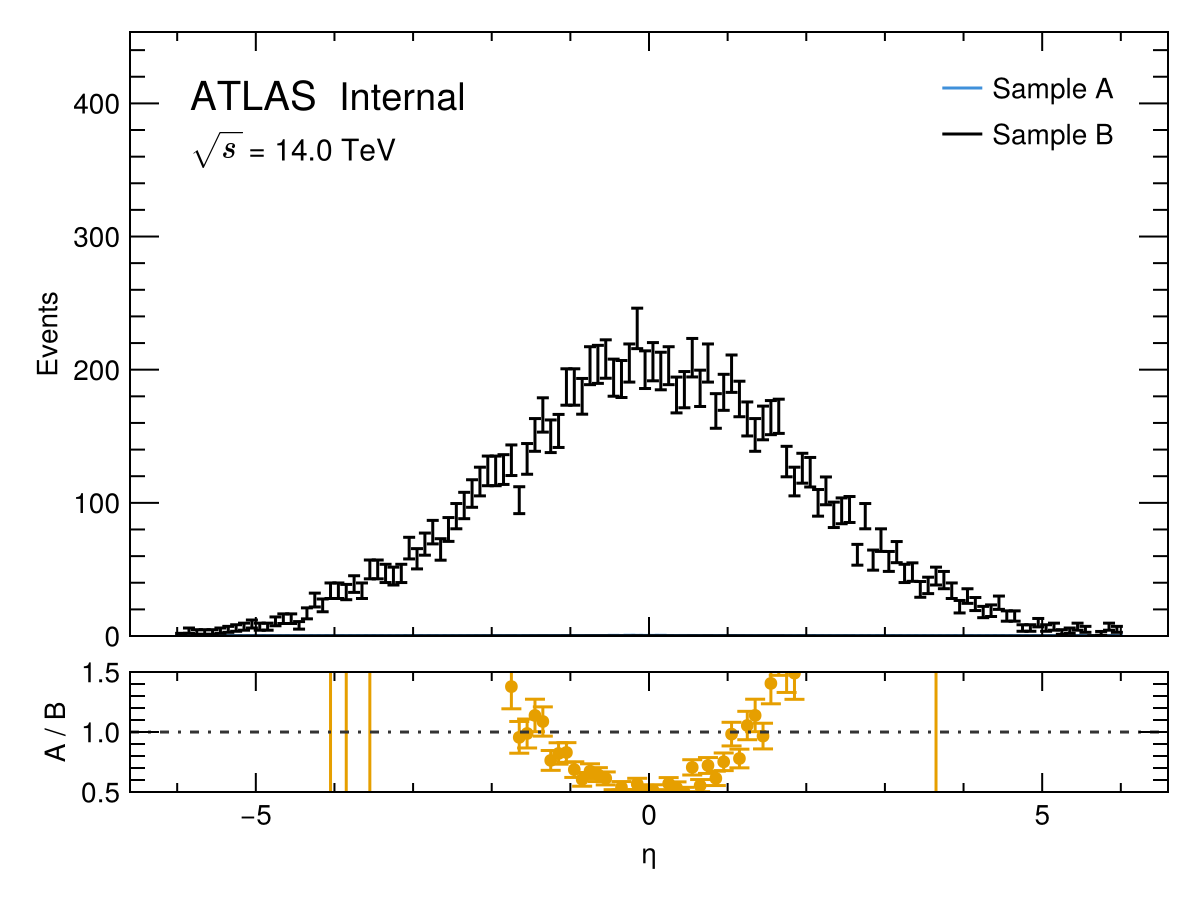

Example block output

Set plot_as_data = [false, true] to draw the second histogram as scatter points:

fig = plot_comparison(
    h1, h2,
    "", L"$\eta$", "Events",
    "MC", "Data", "Data / MC";
    plot_as_data    = [false, true],
    normalize_hists = false,
    options         = HEPPlotOptions(ATLAS_label = "Preliminary", energy = 13.6),
)

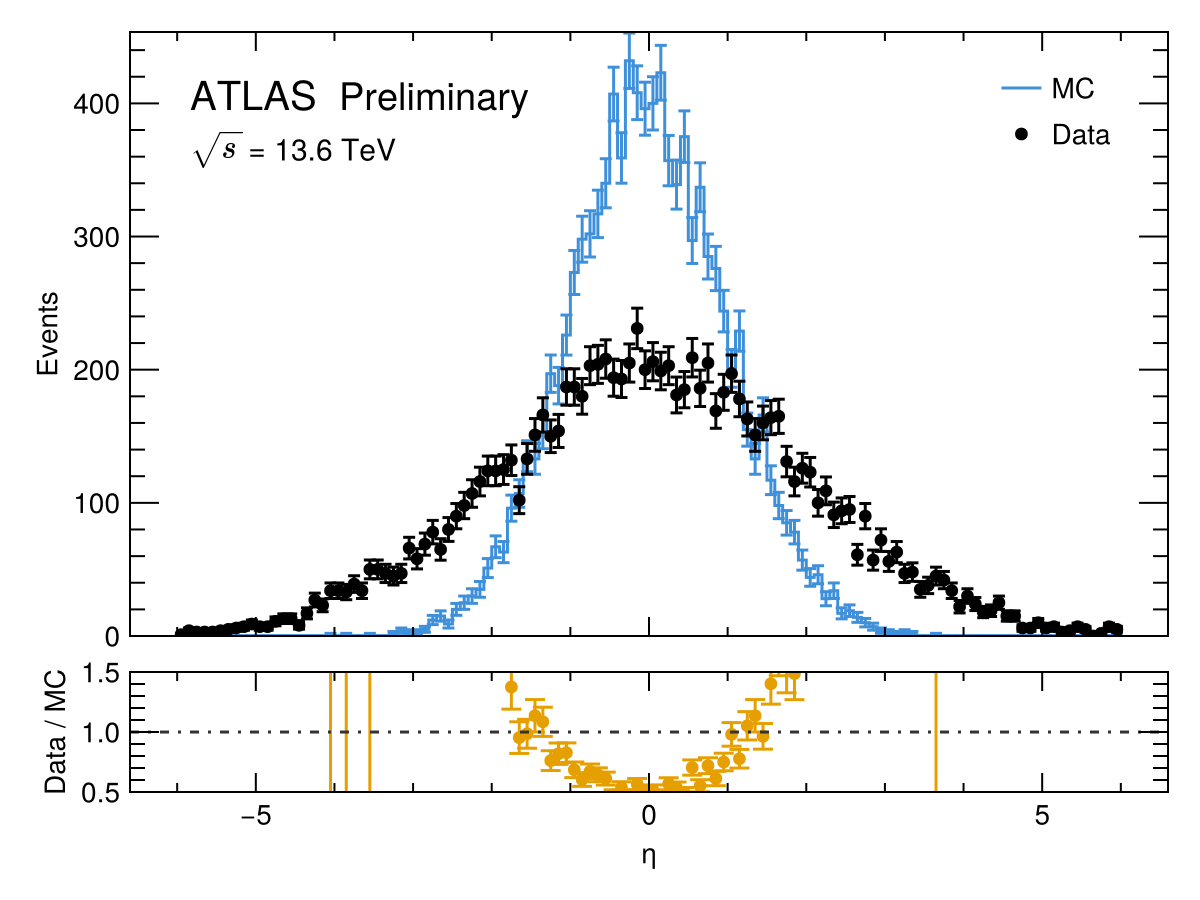

Example block output

Signal vs. background — plot_signal_vs_background

plot_signal_vs_background is another convenience wrapper around multi_plot. It overlays signal histograms (dashed lines) on background histograms, with an optional cumulative S/√B significance panel and a side legend.

fig = plot_signal_vs_background(
    [h1],       # signal histograms
    [h2, h3],   # background histograms
    "", L"$p_T$ [GeV]", "Events",
    ["Signal"],
    ["bkg 1", "bkg 2"];
    stack         = true,
    plot_s_sqrt_b = true,
    options       = HEPPlotOptions(ATLAS_label = "Simulation"),
)
Example block output

Set plot_s_sqrt_b = false to suppress the S/√B sub-panel.

Event display — event_display

event_display draws a 2-D (η, ϕ) event display. Every physics object must expose eta() and phi() from LorentzVectorHEP.

using LorentzVectorHEP

jets    = [LorentzVector(50.0,  1.0,  0.5, 0.0)]
largeR  = [LorentzVector(200.0, 0.2,  2.5, 0.0)]
leptons = [LorentzVector(40.0, -1.2, -1.0, 0.0)]

fig = event_display(jets, largeR, leptons;
                    η_range        = -2.5:0.5:2.5,
                    ϕ_range        = -3.15:0.45:3.15,
                    jet_R          = 0.4,
                    largeR_jet_R   = 1.0,
                    element_labels = ["Leptons", "Large-R Jets", "Jets"])

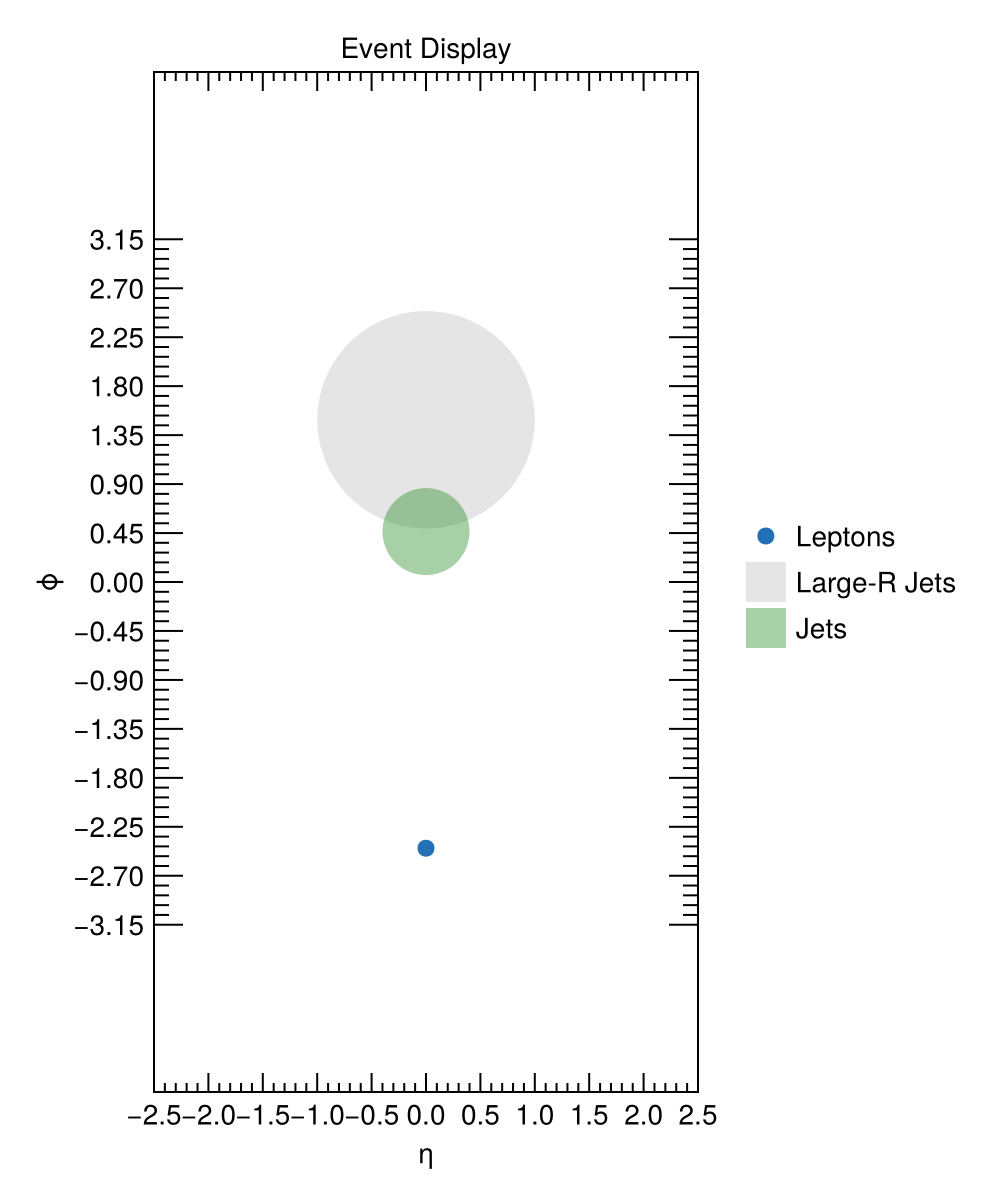

Example block output

Jets and large-R jets are drawn as circles of radius jet_R and largeR_jet_R in (η, ϕ) space. Leptons are drawn as scatter points.

Adding an ATLAS label manually — add_ATLAS_internal!

For custom figures where you manage the Axis yourself, call add_ATLAS_internal! directly:

fig = Figure()
ax  = Axis(fig[1, 1]; xlabel = L"$p_T$ [GeV]", ylabel = "Events")
stephist!(ax, h1)
add_ATLAS_internal!(ax, "Internal"; offset = (30, -20), fontsize = 20, energy = 13.6)
fig
Example block output

The first positional argument after ax is the secondary descriptor placed after the italic "ATLAS" text, e.g. "Internal", "Simulation", or "Preliminary".
